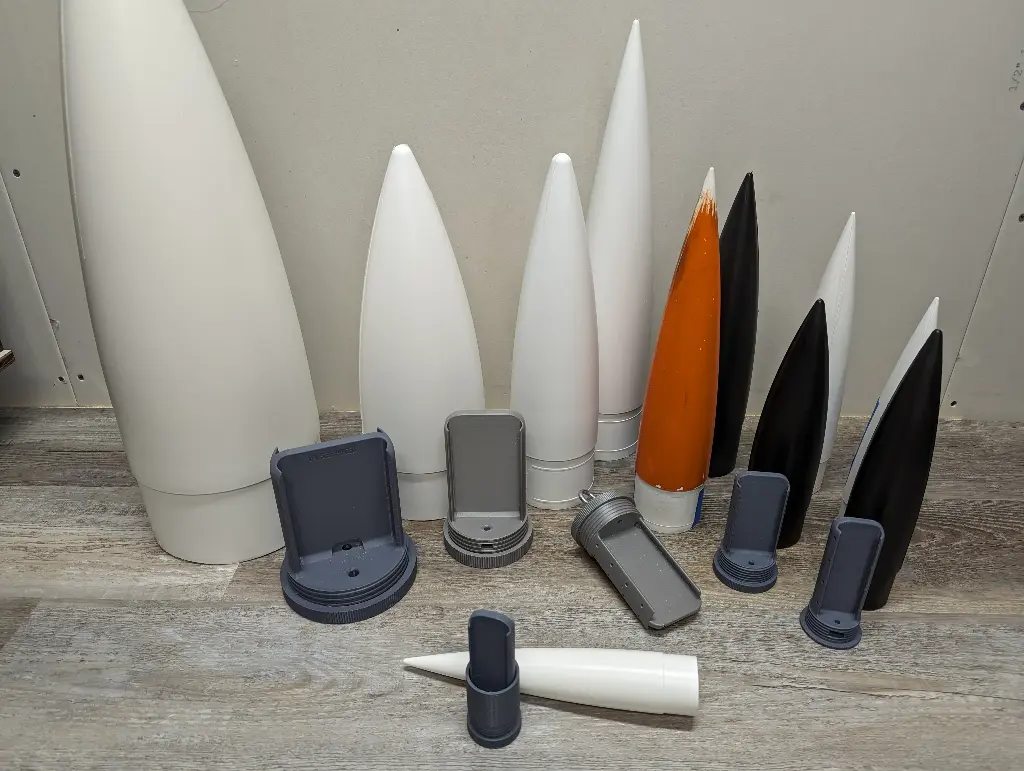

Plastic Nose Cone Electronics Bay (PNCEB)

https://www.invertedpursuitslab.com/web/image/product.template/144/image_1920?unique=ebd3aff
These are designed to fit LOC, PML, Estes and a few other Plastic Nose Cones. You can find fitment guides (sleeve diameters) in the description below as well as info on cross fit to Fiberglass Nose Cones.

$ 12.59 12.59 USD $ 12.59

$ 11.55

Not Available For Sale

  • PNCEB

This combination does not exist.

Contact Us

Terms and Conditions
 Shipping: ~1 week

Share

Variations made for LOC, PML, ESTES and Balsa Machining Nose Cones.
**Fit may require sanding of nose cone and or printed sleeve to achieve desired fit due to variations in Nose Cones.
Additional Sleeves are available so you can swap one sled between multiple rockets!

Designed to be glues in or screwed in. (The smaller nose cones do better with glue)
In order to screw it in you will need to source 2-56 screws and drill the required holes (typ 1/16in)
Glueing in is as simple as it sounds, add a little epoxy to the nose cone and slide it in. Be sure not to get epoxy on the threads.

Sled base has 2 pass through holes to run wires from boards into the tube
Sled base has location for 1/4-20 nut to slide in and a 1/4-20 Eye-bolt to be run through for shock cord mounting.

** Some Sleeves are keyed to only thread in one way, pay attention to direction of mount during install.

**The 2.6in & 4in sleds are interchangable between LOC and PML sleeves, the sleeve distinctions are being made to increase performance of the parts while in use.

**The 54mm (2.14in) Sled fits LOC 2.26in OD rockets that come with plastic nose cones.


The Sled can handle trackers or Dual Deploy Electronis.
Max Board Length x Width: (per side)
1.9in: 3.6in x 1.15in
54mm: 4in x 1.2in
2.6in: 3.5in x 1.6in
3in: 4in x 2.2in
4in: 5in x 2.7in
5.38: 5in x 4in
7.5: 6in x 6in

Sleeve Diameters:
1.9in: 1.68in
54mm: 1.95in
2.6in LOC: 2.41in
2.6in PML: 2.38in
3in LOC: 2.86in***
3in EST: 2.8in
4in PML: 3.7in
4in LOC: 3.75in***
5.38in: 5.18in
7.5in: 7.29in
***Fits Fiberglass Coupler of that size

Includes:
1 - Threaded Sleeve (Note this does have a top and a bottom, it only threads in one way)
1 - Threaded Electronics Carrier/Bulkhead

Still Needed (1.9-4in)
1 - 1/4-20 Eye Bolt
1 - 1/4-20 Nut

Still Needed (5.38)
1 - 3/8-16 Eye Bolt
1 - 3/8-16 Nut
1 - 1/2 Washer (reccomended)

Still Needed (7.5)
1 - 1/2 Eye Bolt
1 - 1/2 Nut
1 - 1/2 Washer

Retention Method to Nose Cone (Glue or screws)

Vidoe showing use of system: https://youtu.be/IV6kjvcf1Iw
